ZXMS6004FFQTA
Manufacturer:
Diodes Incorporated
Mfr.Part #:
ZXMS6004FFQTA
Datasheet:
Description:

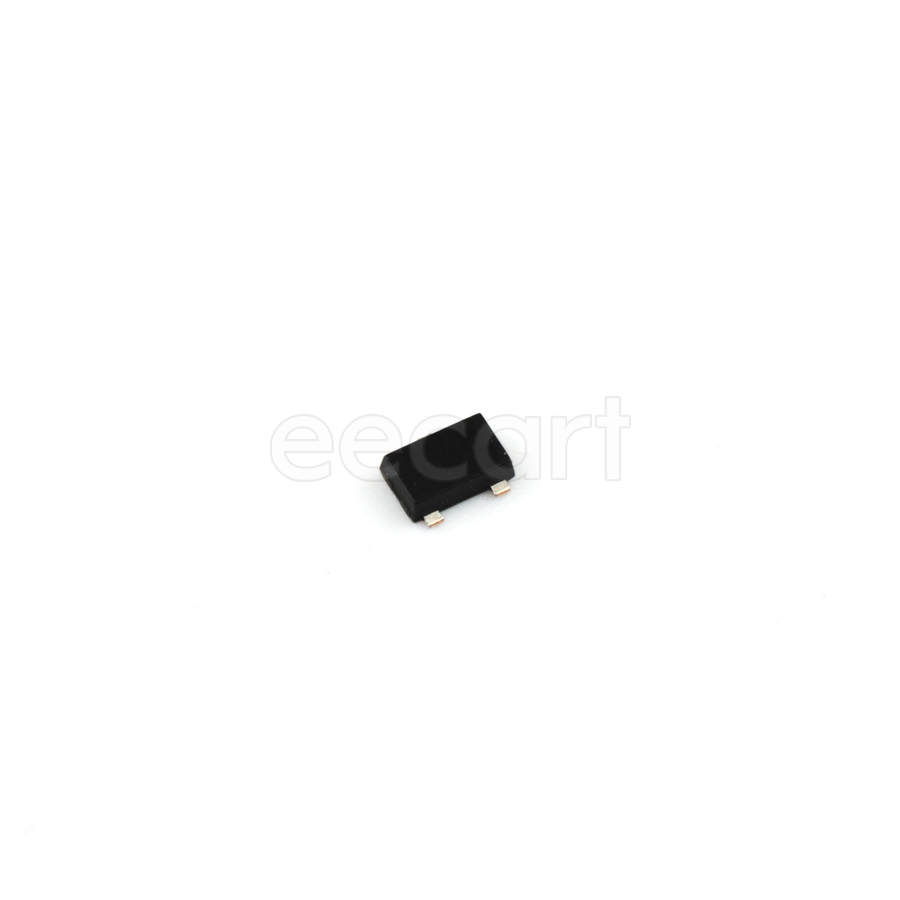

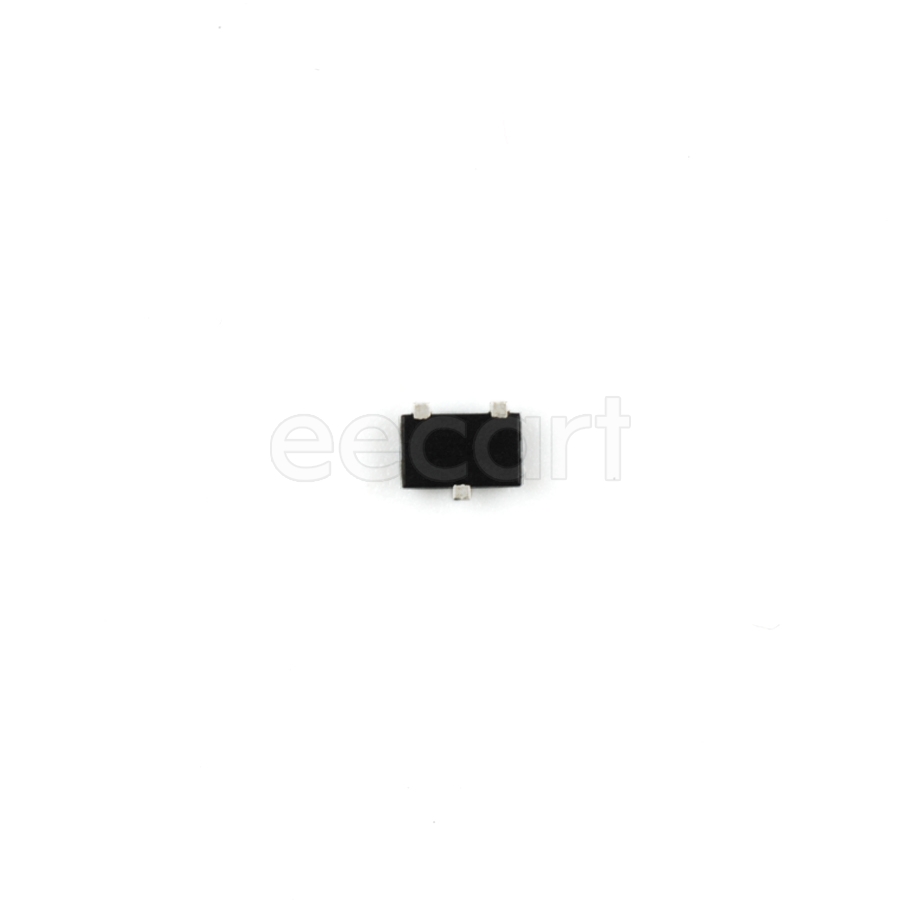

MOSFETs SOT-23F SMD/SMT N-Channel number of channels:1 1.5 W 60 V Continuous Drain Current (ID):1.3 A
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Interface | On/Off |
| Power Dissipation | 1.5 W |
| Max Output Current | 1.3 A |
| Number of Channels | 1 |
| Continuous Drain Current (ID) | 1.3 A |
| Output Configuration | Low Side |
| Number of Outputs | 1 |
| Drain to Source Resistance | 350 mΩ |
| Fault Protection | Over Temperature, Over Voltage |
| Drain to Source Breakdown Voltage (Vds) | 60 V |
| Schedule B | 8542390000 |
| Gate to Source Threshold Voltage | 700 mV |
| FET Type(Transistor Polarity) | N-Channel |
Stock: 1564
Distributors
pcbx
pcbxUnit Price$0.33110
Ext.Price$0.33110
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.33110 | $0.33110 |
| 10 | $0.29646 | $2.96460 |
| 50 | $0.26544 | $13.27200 |
| 100 | $0.22528 | $22.52800 |
| 500 | $0.19119 | $95.59500 |
| 1000 | $0.18405 | $184.05000 |
| 3000 | $0.17718 | $531.54000 |
| 5000 | $0.16758 | $837.90000 |
